1. Product Name

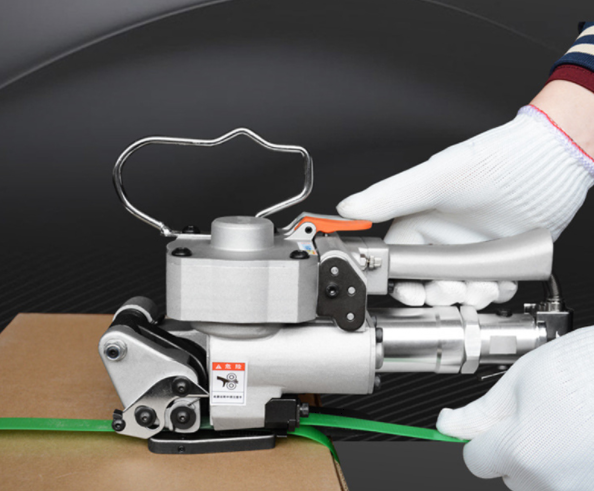

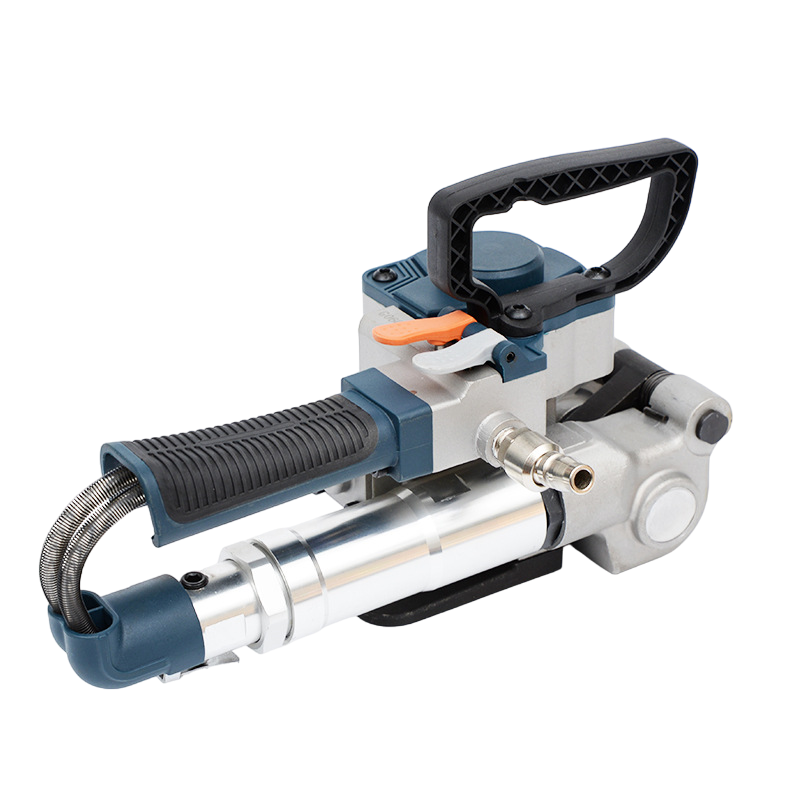

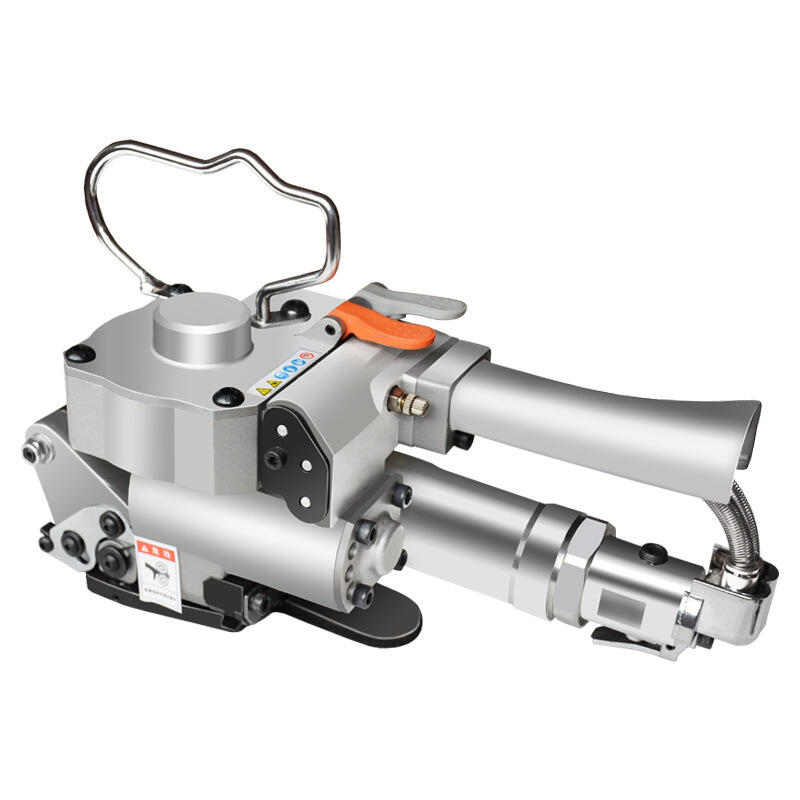

Pneumatic Strapping Machine – Powerful & Portable Tensioning Solution
(Optional Subtitle: High-Torque Air Motor | Friction Weld Sealing | Lightweight Design | For Heavy-Duty PET & PP Strapping)
2. Key Product Highlights (Bullet Points)
-
High-Power Air Motor: Driven by compressed air, delivering consistent high torque to tension heavy-duty straps (up to 19mm width) with minimal operator effort.
-
Friction Weld Sealing: Utilizes advanced friction melting technology to seal the strap without metal clips or seals, reducing consumable costs and ensuring a strong, reliable joint.
-
Lightweight & Ergonomic: Designed for portability and ease of use, weighing significantly less than electric battery models, which reduces operator fatigue during overhead or vertical strapping.
-
Durable Construction: Built with a rugged metal housing (aluminum/steel) to withstand harsh industrial environments, dust, and drops.
-
Adjustable Tension & Cooling: Features easy-to-adjust knobs for tension control and cooling time, allowing customization for different strap materials and load requirements.
3. Technical Specifications Table
| Specification |
Standard Pneumatic Tool |
Heavy-Duty Pneumatic Tool |
| Power Source |
Compressed Air (6-8 Bar) |
Compressed Air (6-8 Bar) |
| Strap Material |
PP, PET (Non-metallic) |
PET, High-Tensile PP |
| Strap Width |
9mm - 13mm |
13mm - 19mm |
| Strap Thickness |
0.5mm - 1.0mm |
0.8mm - 1.2mm |
| Tension Force |
Up to 1800 N |
Up to 3000 N |
| Sealing Method |
Friction Weld (Heat) |
Friction Weld (Heat) |
| Air Consumption |
~3.5 Liters/Cycle |
~5.0 Liters/Cycle |
| Weight |
~2.8 kg |
~3.5 kg |
| Dimensions (LxWxH) |
350 x 120 x 280 mm |
380 x 140 x 300 mm |
| Noise Level |
< 75 dB |
< 80 dB |
4. Detailed Product Description
Overview
Unlock the power of air with our Pneumatic Strapping Machine. Designed for heavy-duty applications where electric tools might struggle or be too heavy, this pneumatic tool offers an exceptional power-to-weight ratio. Ideal for securing steel coils, timber bundles, and large pallets, it provides the muscle needed to tension thick PET straps while maintaining the precision required for a secure friction weld. Its simplicity—having fewer electronic components—makes it highly reliable and easy to maintain in dusty or rugged workshop environments.
Why Choose Our Pneumatic Strapping Machine?
-
Unmatched Power-to-Weight: Pneumatic motors are lighter than battery packs, making this tool perfect for overhead strapping or applications where the operator must hold the tool for extended periods.
-
Cost-Effective Operation: No batteries to degrade or replace. As long as you have an air compressor, this tool runs indefinitely with minimal maintenance.
-
Versatile Sealing: The friction weld system works on both PP and PET straps, eliminating the need to stock metal seals or buckles.
-
Rugged Reliability: With no circuit boards or sensitive electronics, it is less susceptible to damage from moisture, dust, or vibration.
-
Safety: Features a safety lever to prevent accidental firing and a non-slip handle for secure grip in oily or greasy environments.
Performance Metrics
-
Tensioning Speed: Fast cycle time (< 3 seconds).
-
Seal Strength: > 80% of strap tensile strength.
-
Durability: Designed for continuous industrial use.
5. Application Scenarios
-
Steel & Metal Industry: Securing steel coils, pipes, and angle bars where high tension is critical to prevent load shift.
-
Construction & Timber: Bundling lumber, plywood, and scaffolding parts on-site.
-
Palletizing: Heavy-duty unitization of bricks, stones, and heavy machinery parts.
-
Recycling: Baling cardboard, plastics, and scrap metal for transport.
-
Transportation: Securing cargo inside shipping containers to prevent movement during transit.
6. Selection Guide
-
Strap Width:
-
13mm (1/2 inch): Standard for most general palletizing and light industrial bundling.
-
16mm - 19mm (5/8 - 3/4 inch): Required for heavy loads like steel, logs, or dense construction materials.
-
Air Supply: Ensure your workshop has a compressor capable of delivering at least 6 Bar (85 PSI) and sufficient airflow (CFM) to operate the tool continuously.
-
Environment: If your environment is explosive or highly flammable (e.g., chemical plants), pneumatic tools are generally safer than electric ones as they do not generate sparks.
7. Frequently Asked Questions (FAQ)
Q: Do I need an air compressor to use this?
A: Yes, this is a pneumatic tool and requires a compressed air source. We recommend a compressor with a tank size of at least 50 liters for consistent performance.
Q: Can it strap metal?
A: It cannot strap metal wire, but it is designed to strap heavy metal objects (like steel coils or pipes) using PET or PP plastic strapping.
Q: How do I maintain the tool?
A: Pneumatic tools require regular oiling. We recommend adding a few drops of pneumatic tool oil into the air inlet daily if your air line does not have an automatic lubricator.
Q: Is it better than a battery strapping tool?
A: Pneumatic tools are lighter and have no battery life limits, making them better for continuous high-volume use. Battery tools offer more mobility if you don't have air lines nearby.
